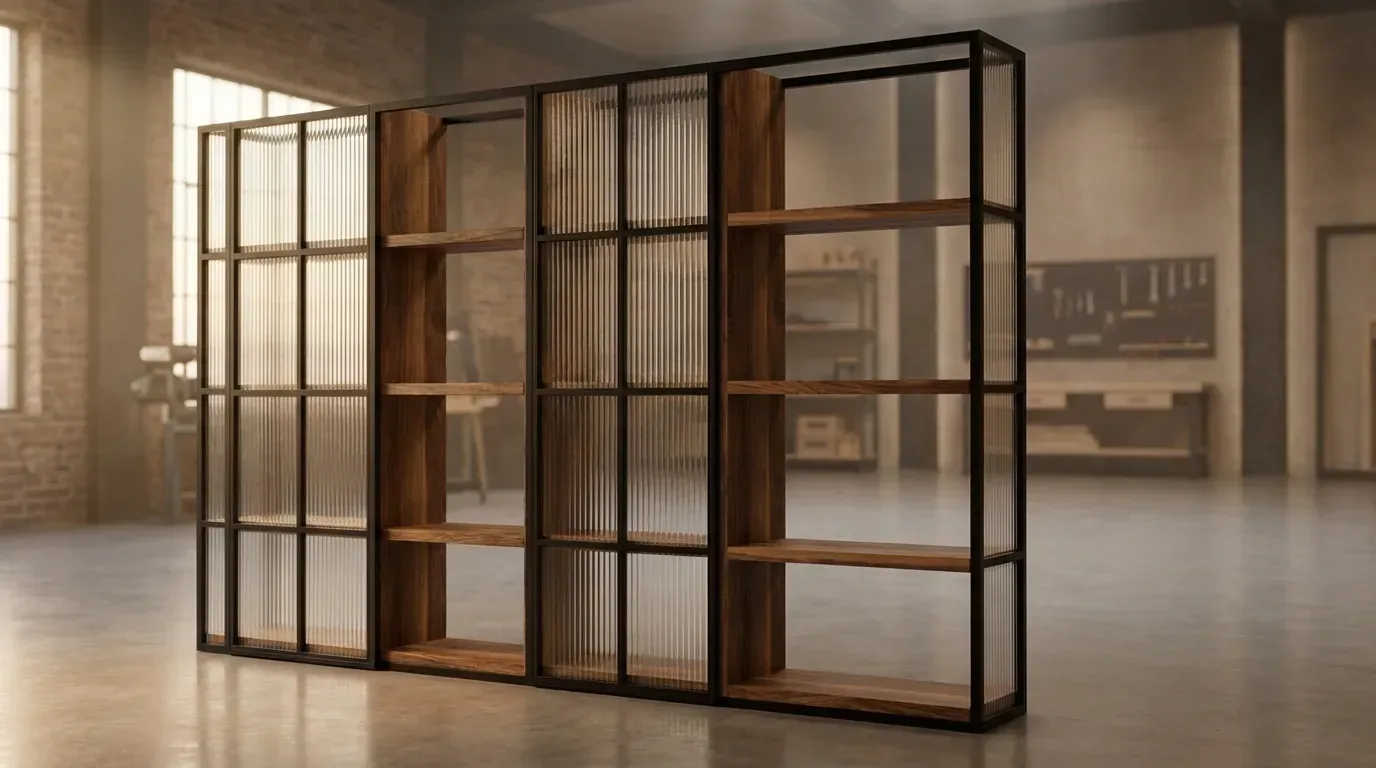

Custom Shelving in Steel and Solid Wood: Planning and Materials Guide

Off-the-shelf storage units make you adapt your space to fit the product. A custom shelf works the other way around: it fills an alcove precisely, carries real loads over the long term, and becomes a coherent part of the room rather than an afterthought. The Large Shelf from Manufaktur X pairs a powder-coated steel frame with solid hardwood shelves in oak, beech or ash - produced to the millimetre, configurable in minutes via the 3D configurator.

Why a Custom Shelf Outperforms Standard Units

Fixed Sizes Always Mean Wasted Space

Standard retail shelving comes in fixed width and height increments - typically 400, 600 or 800 mm wide, with maximum heights around 2,200 mm. In a period apartment with ceiling heights of 3.0 m or more, that leaves a dead zone of 800 mm or more above the unit. A room with 3,100 mm of clear height loses 900 mm of usable wall area to that gap. A custom shelf built to exactly 3,060 mm - leaving 40 mm clearance at the top for installation - makes full use of the same wall.

The same logic applies to alcoves and chimney breast recesses, which are almost never a standard width. A production unit either does not fit at all or leaves visible gaps on either side. With a made-to-measure shelf, width, height and depth are matched to the actual installation point - not the other way around. This is one of the most common issues customers raise when they first contact us: they have tried two or three off-the-shelf units and none of them sit right in the space.

Structural Performance and Material Honesty

A 19 mm particleboard shelf will visibly sag by 3 to 5 mm across an 800 mm span under 30 kg of evenly distributed load - and under sustained load, particleboard continues to creep over months and years. Solid hardwood from oak, beech or ash behaves fundamentally differently. The bending stiffness of an oak board is substantially higher than that of particleboard at the same thickness. In our workshop, we cut shelf boards from seasoned, kiln-dried timber and check moisture content before assembly - because wood that is not properly dried will move once it is in a heated interior.

The steel frame handles all vertical load transfer and keeps the structure rigid. The solid wood shelves serve as the bearing surface and contribute the material warmth that a pure steel construction cannot offer. The two materials do different jobs, and both are visible - that structural honesty is exactly what makes the industrial-meets-natural aesthetic work.

Consistency Across Your Interior

If you already have a steel-framed loft door or a room divider in RAL 7016 anthracite grey, you can specify exactly the same RAL colour for the shelf frame - at no extra cost. The result is a coherent material language across the room rather than a collection of loosely related pieces. This kind of cross-product coordination is something flat-pack furniture simply cannot offer.

Materials: What Goes Into the Large Shelf

Solid Hardwood in Oak, Beech and Ash

Manufaktur X works exclusively with solid hardwood from European species. Each of the three options has distinct characteristics:

• Oak - pronounced, lively grain, high bending stiffness, the first choice for wide shelf spans carrying heavy loads such as books or equipment
• Beech - finer, more uniform structure, quieter visual texture, ideal when you want the wood to recede and let objects on the shelf take centre stage
• Ash - lighter in tone than both oak and beech, with a straight grain that suits contemporary interiors; a fully capable choice for shelving with moderate loads

Surface finish is your choice from over 50 stains - ranging from natural warm tones through smoked dark finishes to a wide range of colour directions. Solid wood develops a patina over time that deepens the character of the piece; unlike veneer or lacquered MDF, the material improves with age rather than showing wear as a defect.

Powder-Coated Steel Frame

The frames are fabricated from square-section steel profiles and powder-coated after welding. Powder coating is applied electrostatically as a dry powder and then cured under heat, producing a finish that is scratch-resistant, solvent-resistant and even in colour across every surface. It is also a cleaner process than wet paint, with no solvent emissions. Every standard RAL colour is available - from anthracite (RAL 7016) and pure white (RAL 9010) to jet black (RAL 9005) - and custom RAL shades outside the standard palette are possible on request.

Steel and Solid Wood Together

The frame is an intentional design element, not something to hide behind a back panel. Steel carries the loads and provides dimensional rigidity; solid wood delivers the bearing surface and the tactile quality that makes the piece worth touching. This combination - associated with loft and industrial interiors - works because it makes the structural logic of the furniture immediately readable. There is no pretence about what each material is doing.

Please note: The Large Shelf is a steel-and-solid-wood product and does not include glass. If you are looking for steel-and-glass combinations, see the loft door and room divider product pages.

Large Shelf or Pipe Shelf: Which One Is Right for You?

Manufaktur X offers two custom shelving lines in steel and solid wood. The right choice depends on five factors: wall type, ceiling height, desired depth, load requirements and visual style.

Wood species and RAL colour are freely configurable on both models. Coordinating your shelf with other furniture in the room costs nothing extra - the same options are available regardless of which shelving line you choose. You can also explore the Pipe Shelf in the configurator to compare both side by side.

Where the Large Shelf Performs Best

Living Rooms and Open-Plan Spaces

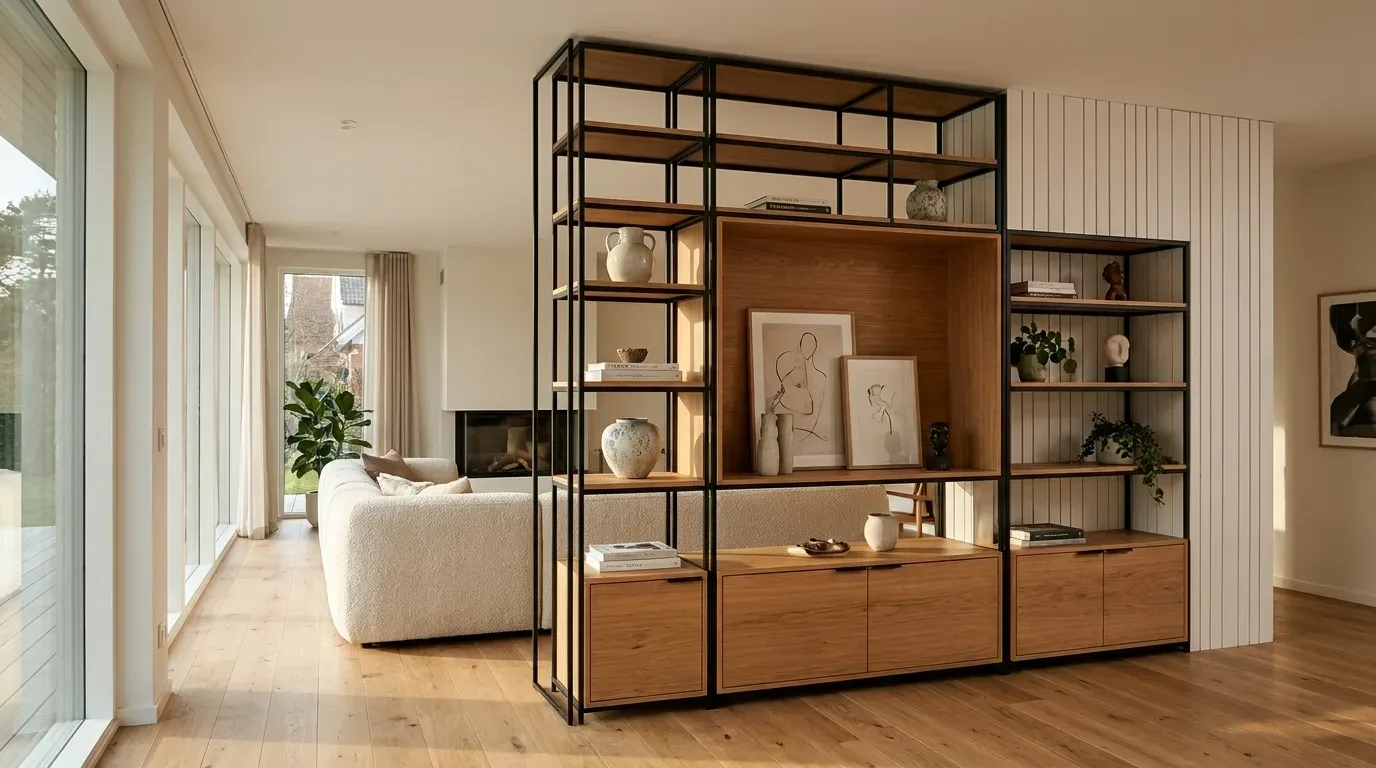

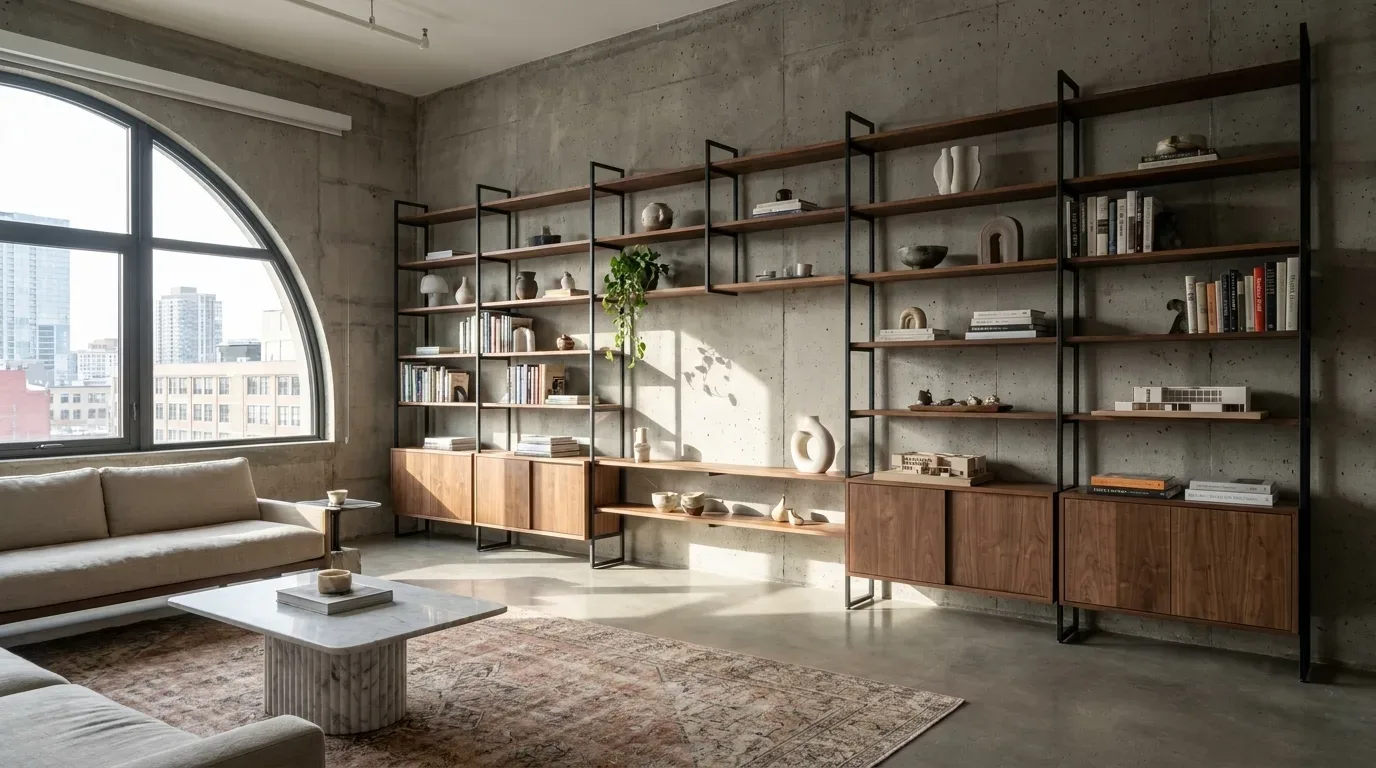

A floor-to-ceiling custom shelf structures a room and creates order without building walls. Books, collections and objects remain visible and accessible. Used without a back panel, the Large Shelf can divide an open-plan living area into distinct zones - a reading corner from a dining space, for instance - while preserving the sense of openness. This is one of the most requested configurations among customers furnishing converted apartments or new-build open-plan layouts.

Home Office and Study Areas

A custom freestanding shelf creates a visual and practical boundary between work and living space in a way that a bookcase pushed against a wall simply does not. Storage for reference materials, equipment and files sits close at hand without the desk feeling isolated or exposed. In smaller European apartments where a dedicated study room is not possible, this kind of zoning makes a real difference to how a space feels during working hours.

Bedrooms, Attic Rooms and Compact Flats

Attic rooms with sloped ceilings present a particular challenge for standard shelving - units designed for 2,400 mm ceilings look undersized or leave awkward gaps in rooms where the ridge height might be 3,200 mm but usable wall height varies across the room. A shelf configured to the actual available height at each position uses the space properly. In a studio or one-bedroom flat, a well-placed custom shelf can provide enough storage to remove the need for additional free-standing units entirely.

Commercial and Hospitality Settings

Custom shelving serves both functional and brand-building purposes in commercial interiors. Typical applications include:

• Cafes and wine bars: display shelving that becomes part of the room's identity
• Concept stores and boutiques: product presentation with a consistent material language
• Showrooms: coordinated steel and wood across shelving, tables and partitions
• Professional studios and creative offices: functional storage that reads as a considered design choice

Planning Your Custom Shelf: A Step-by-Step Approach

Step 1 - Understand the Space Before You Measure

Before picking up a tape measure, walk around the intended location. Note obstacles: radiators, skirting board depth, light switches, window reveals, and any pipework that might be concealed in the wall. Consider what the shelf needs to hold - a display shelf for ceramics has very different load requirements from a reference library or a shelf carrying audio equipment. Sketch the wall elevation roughly, including any features that might affect how the shelf sits. Key questions to answer at this stage:

• What height and depth do you need?
• How many shelf levels, and what spacing between them?
• Freestanding as a room divider, or positioned against the wall?
• Does the steel frame need to coordinate with existing furniture?

Step 2 - Measure Carefully, at Multiple Points

Walls in period buildings are rarely plumb or square. In a typical pre-war apartment block, the width of an alcove can vary by 15 to 20 mm between floor and ceiling - a difference that is invisible to the eye but immediately apparent when a rigid piece of furniture arrives. Measure width at the top, middle and bottom; measure height at both sides and the centre; check depth at multiple points if the wall is not flat. Always use the smallest measurement as your input value in the configurator. The shelf is manufactured to exactly the dimensions you enter - a measurement error is not a production fault, and it is the most common reason a custom piece does not fit as expected.

Measurement checklist:

1. Width at three heights (top, centre, bottom)
2. Height at two or more positions across the width
3. Available depth, accounting for skirting board projection
4. Location of any electrical outlets or buried pipework
5. Enter the smallest measured value for each dimension in the configurator

Step 3 - Choose Wood Species, Stain and Frame Colour

Select your hardwood species (oak, beech or ash) and choose a surface finish from over 50 stains. Then specify the RAL colour for the powder-coated steel frame - all standard RAL colours are included in the base price. Think about whether the shelf should be a quiet background element or a deliberate material-contrast feature in the room. Practical considerations at this stage:

• Load requirements - oak offers the highest bending stiffness for wide spans under heavy loads
• Surface maintenance - oiled finishes require periodic re-oiling; other finishes are lower-maintenance
• Coordination with existing furniture, door frames and floor colour

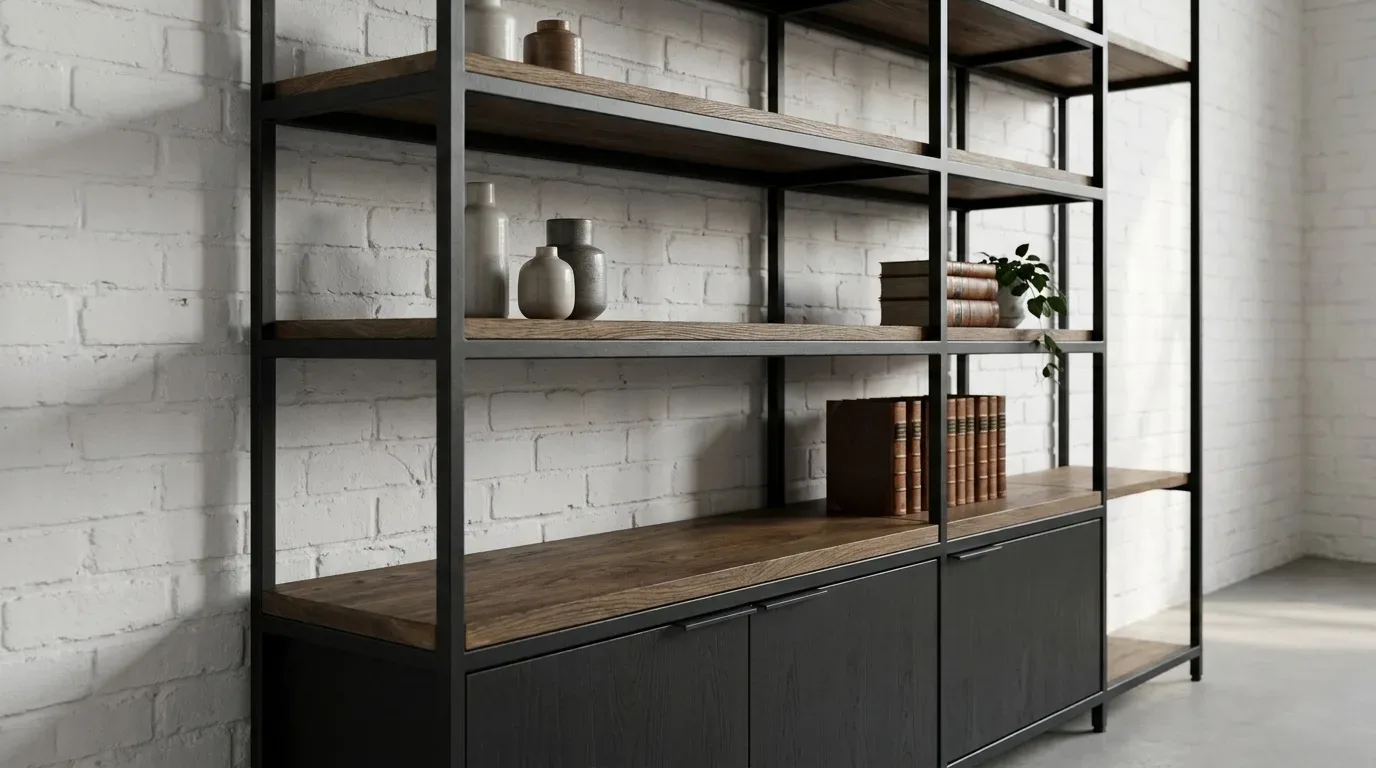

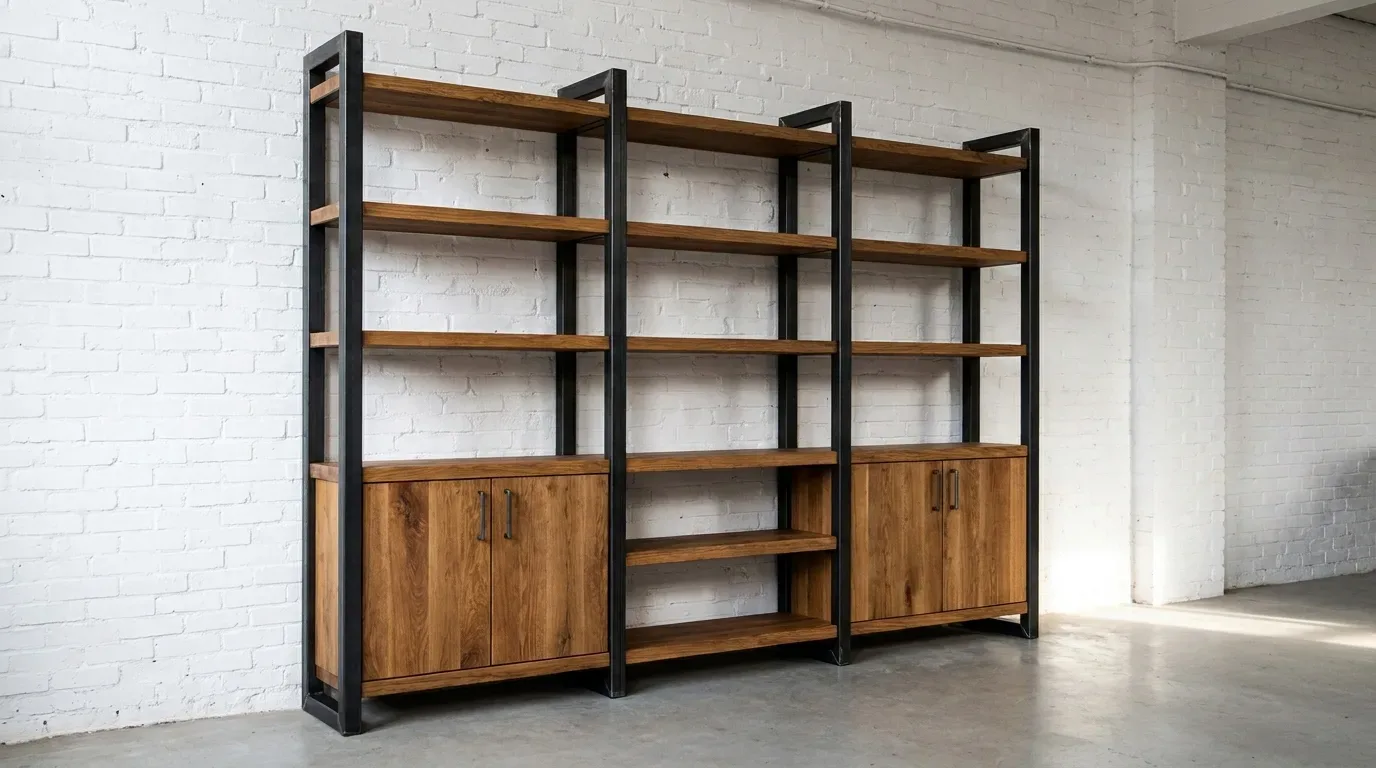

• Whether lower sections should incorporate closed storage

Step 4 - Configure in the 3D Tool

Open the Large Shelf configurator and enter your exact dimensions. Every change to size, wood species, stain or frame colour updates the price in real time - there are no pricing surprises at checkout. Review the shelf from multiple angles, check shelf spacing, and confirm the colour combination before proceeding. Delivery costs are shown transparently in the cart.

Step 5 - Review Before Confirming

Before placing the order, cross-reference the configuration summary against your room sketch and measurement notes. Confirm the delivery address and factor the production and delivery timeline into your planning - the Large Shelf is made to order with a production time of 5 to 6 weeks.

Step 6 - Installation and Final Check

You will need a cordless drill, a spirit level, a pencil and a tape measure. Check all delivered parts against the packing list before starting assembly. Key installation steps:

• Verify all components are present and undamaged
• Position accurately using a spirit level - do not rely on the wall or floor being true
• Ensure wall fixings are appropriate for the wall substrate and the intended load
• Test fixing points before loading the shelf

Once assembled: check stability, verify the shelf is level in both axes, and confirm all joints are secure before placing any load on the unit.

Five Planning Mistakes Worth Avoiding

Measuring Once from One Position

A single measurement taken at one point on the wall gives you a single data point, not a reliable dimension. Walls bow, floors slope, and alcoves taper. Measure at multiple points and use the smallest value. Two centimetres too wide means the shelf will not enter the alcove; two centimetres too narrow means a visible gap. Neither outcome is a production issue - it is a measurement issue.

Underestimating Load Requirements

A shelf holding decorative objects has different structural demands from one holding 200 books or a record collection. Before configuring, estimate the weight per shelf level and choose your wood species and shelf thickness accordingly. Oak across a wide span handles heavy loads comfortably; the same span in a lighter finish may require additional support depending on the configuration.

Forgetting Total Cost of Ownership

A large custom shelf from Manufaktur X starts from 3,200 € - which is substantially more than a flat-pack equivalent from a mass-market retailer. But the comparison changes when you consider that a custom unit fills the exact space, requires no height-compensation accessories, does not need replacing when it sags after a few years, and becomes a fixed part of the room that adds value rather than visual noise. The configurator shows your total price in real time, including delivery - no hidden charges at checkout.

Not Planning for How the Room Will Change

A shelf that works for a home office today may need to accommodate different storage in three years. When configuring, consider whether adjustable shelf spacing makes sense for your situation, and whether lower sections should include closed cabinets for flexibility. A well-planned custom shelf is a long-term investment, not a stopgap.

Treating the Shelf as a Standalone Object

The RAL powder coating on the steel frame is the same system used across all Manufaktur X steel products - loft doors, room dividers, shelving. Specifying the same RAL colour across multiple pieces costs nothing extra and produces a room that reads as deliberately designed rather than assembled from separate decisions.

The Configurator: Real-Time Pricing, No Surprises

Every adjustment to dimensions, wood species, stain or RAL colour updates the price instantly. Delivery costs are shown in the cart before you confirm. The shelf is produced exactly to the dimensions entered - what you configure is what is built.

If your space has an unusual geometry that does not fit the standard configurator - an angled ceiling, a non-rectangular alcove, structural elements that interrupt the wall - the sketch service allows you to upload your own drawing. Manufaktur X reviews the feasibility and provides an individual quote.

Care and Longevity

Maintaining Solid Wood Shelves

Oak, beech and ash are robust hardwoods that require minimal maintenance in normal interior conditions. For routine cleaning, a lightly damp cloth is sufficient. Oiled surfaces benefit from periodic re-oiling or waxing - once or twice a year in most cases. Avoid prolonged direct sunlight on the wood surface, and avoid placing the shelf in rooms with consistently high humidity or large temperature swings. Solid wood is a living material that responds to its environment; stable indoor conditions are all it needs to last for decades. The patina that develops over time is not a flaw - it is the material maturing.

Maintaining the Powder-Coated Steel Frame

The powder-coated frame requires no special care. A dry or lightly damp cloth removes dust and marks. Avoid abrasive cleaning products or solvents, which can damage the coating surface. The powder coating is scratch-resistant under normal use, but it is not impervious to sharp impacts - treat the frame as you would any quality furniture finish.

Frequently Asked Questions About the Large Shelf

What does the Large Shelf from Manufaktur X cost?

Pricing starts from 3,200 € and depends on the dimensions, wood species, stain and configuration you choose. The 3D configurator shows your exact price in real time as you adjust each option. Delivery costs are displayed transparently in the cart before you confirm the order.

Which wood species are available?

The Large Shelf is available in oak, beech and ash - all solid hardwood, with no veneer or engineered wood alternatives. Surface finish is chosen from over 50 stains. No other wood species are offered.

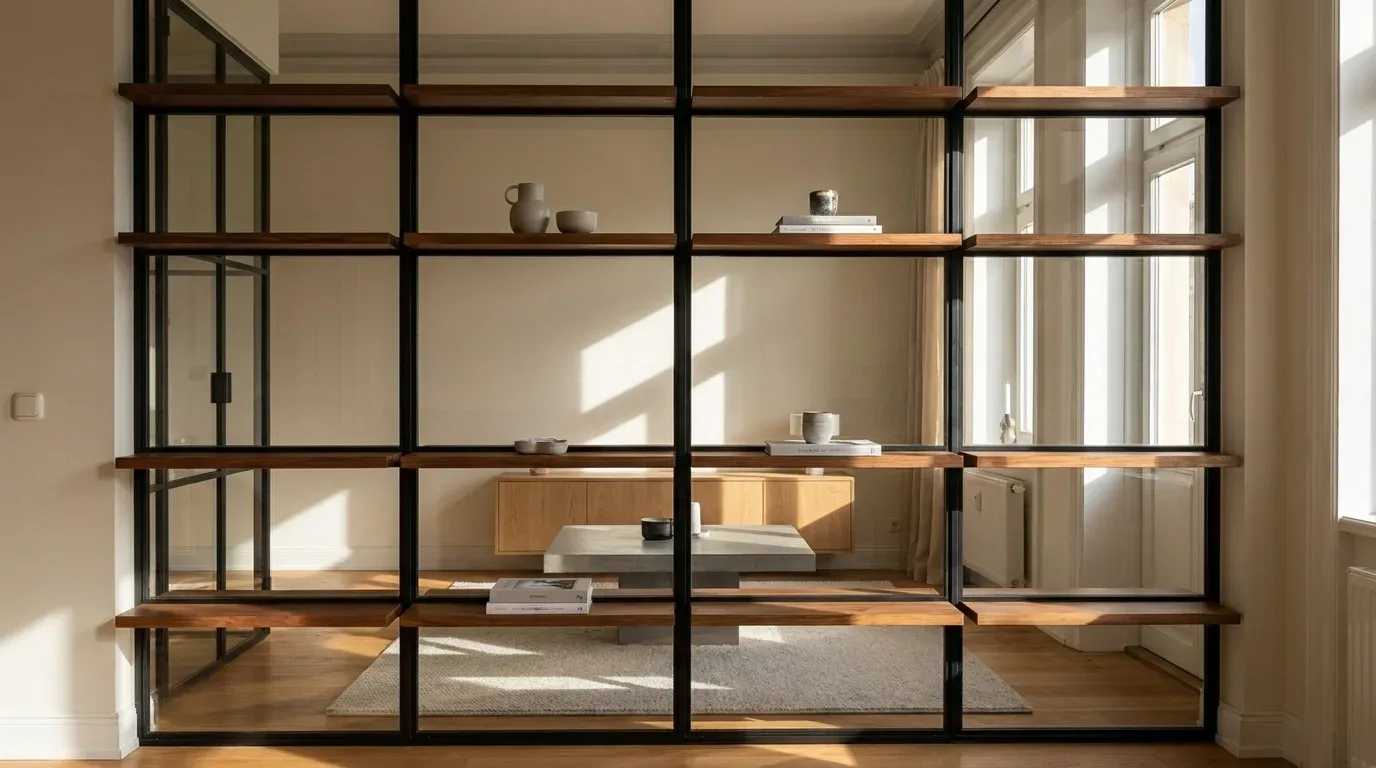

Can the Large Shelf be used as a room divider?

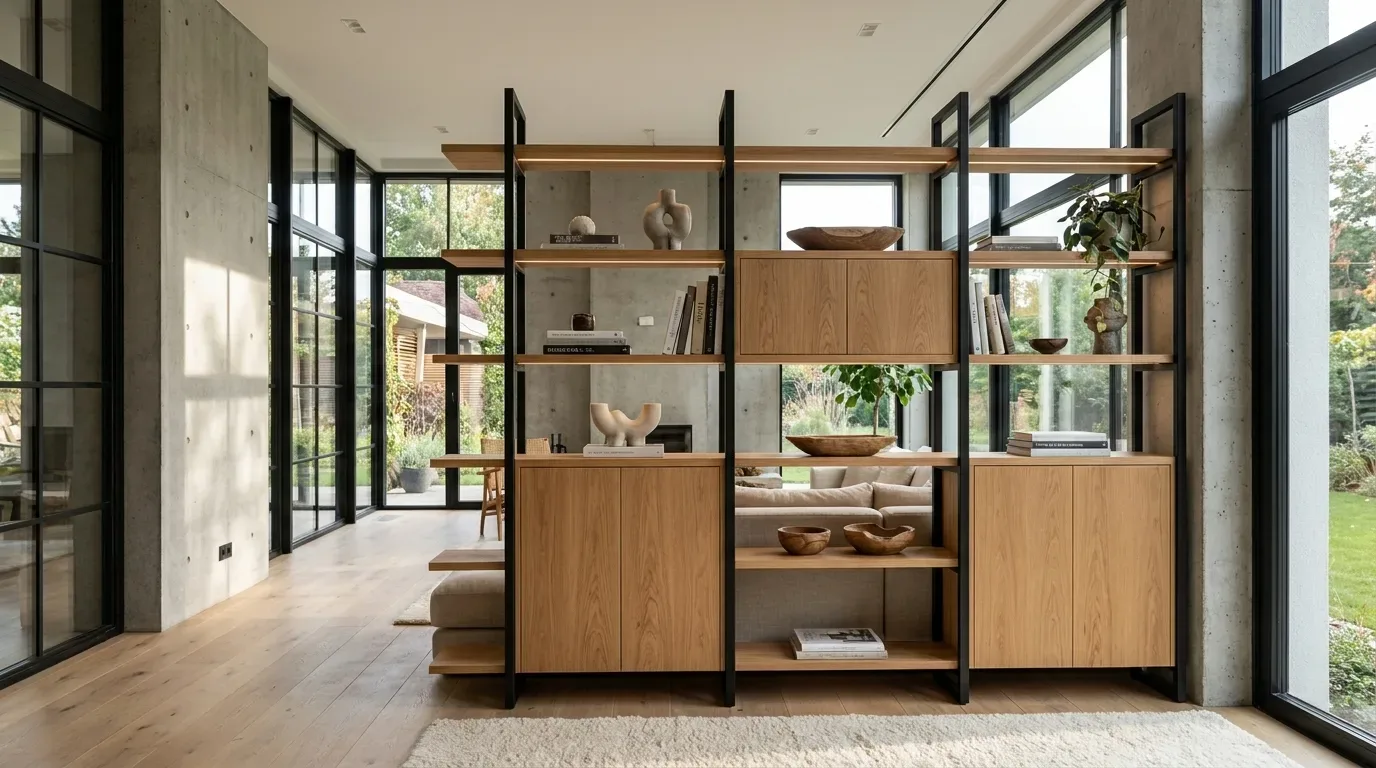

Yes. The Large Shelf is freestanding and can be configured without a back panel, making it an effective way to zone an open-plan space without closing it off entirely. For a product designed specifically as a partition with glass, see the room divider.

How do I measure to ensure the shelf fits correctly?

Measure width, height and depth at multiple points - walls and floors in older buildings are rarely perfectly flat or square. Use the smallest measurement at each dimension as your input value in the configurator. The shelf is manufactured to exactly those figures. The most common reason a custom piece does not fit is a measurement error, not a production fault.

What is the difference between the Large Shelf and the Pipe Shelf?

The Large Shelf is freestanding or wall-positioned and can serve as a room divider. The Pipe Shelf requires wall mounting and features a visible pipe frame rather than a welded steel frame. Both are configurable in oak, beech or ash with any RAL colour for the frame.

How long does production take?

The Large Shelf is made to order. Production takes 5 to 6 weeks from order confirmation. Delivery time is added on top of that and is shown in the cart at checkout.

Is there a sketch service for unusual spaces?

Yes. If your room layout cannot be captured in the standard configurator - for example, an angled ceiling or an irregular alcove - you can upload a sketch via the sketch service. Manufaktur X assesses the feasibility and provides a tailored quote.

Does the Large Shelf include glass?

No. The Large Shelf consists of a powder-coated steel frame and solid hardwood shelves only - no glass. Steel-and-glass products at Manufaktur X are the loft door and the room divider.
