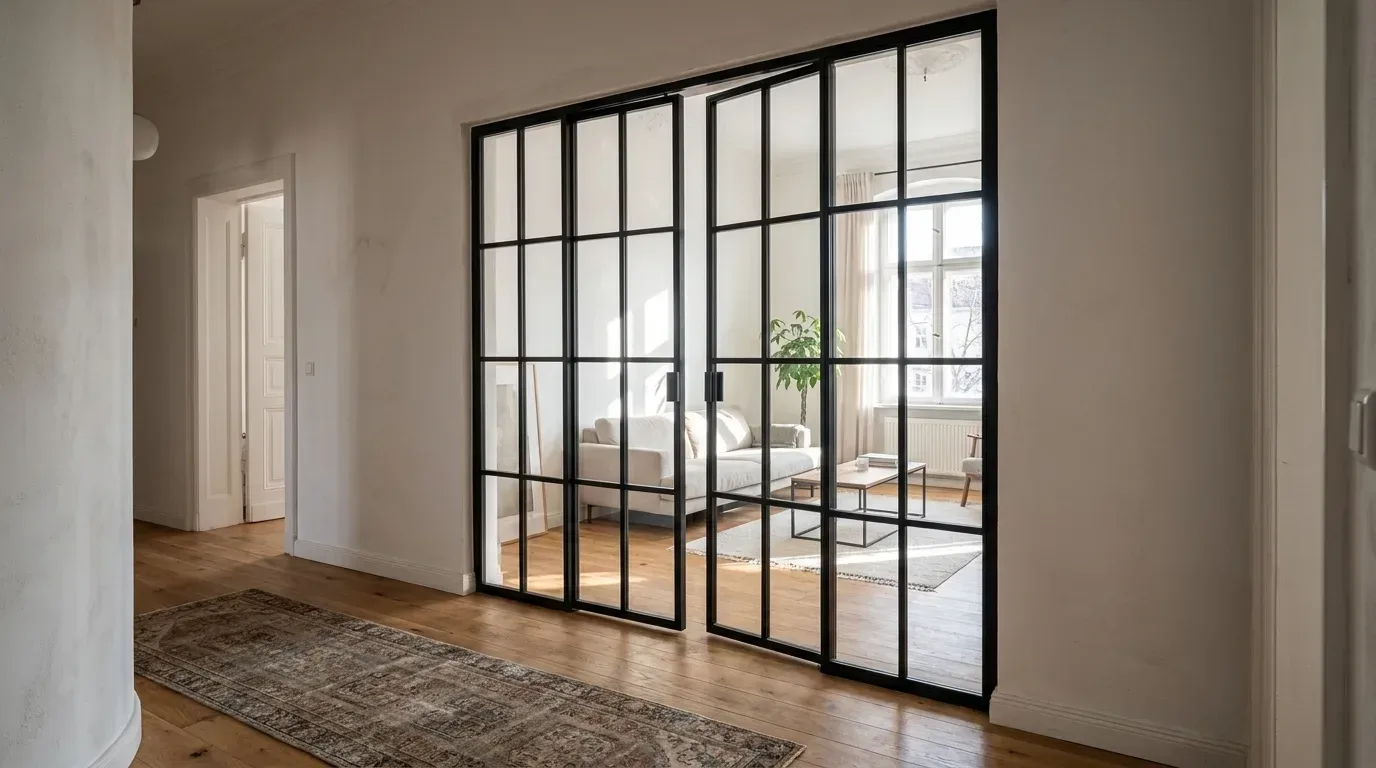

Zoning an Open-Plan Home: Steel-Glass Partitions Instead of New Walls

Zoning an Open-Plan Home: Steel-Glass Partitions Instead of New Walls

Every open-plan flat eventually has the same evening. Someone is on a video call, someone else is frying onions, and the room that felt so generous at the viewing suddenly offers nowhere to retreat to. The reflex answer is a stud wall. The quieter answer is a made-to-measure steel-and-glass element that drops into an opening you already have, lets the daylight keep travelling through the flat, and comes back out again when your life changes shape.

To zone an open-plan room without building walls, fit a made-to-measure steel-glass loft door where the zone genuinely has to close, and a fixed room divider where a visual boundary is enough. Both mount into the existing opening with roughly 5 mm of clearance per side, keep the light flowing and stay removable later.

Loft doors and room dividers are steel-and-glass elements that split an open floor plan into separate zones without structural work. As a result, the layout keeps its daylight, and the change can be undone later.

Want to see how the two behave in an opening before you commit to a line on the floor? The loft door glass, grid and handle options and the steel-glass room divider glazing choices are both documented with a live 3D preview on their product pages.

TL;DR

The answer lies instead in visual and functional signals that tell the eye, and the body, that something new begins here, without a wall actually standing in the way

Source: Planning open floor plans: zoning without walls

• The first question is not which product but which behaviour: does the zone have to shut, or only be legible? Shutting means a loft door, legible means a fixed divider.
• Glass is the dial between the two extremes. In our own configurator, 46% of loft door configurations previewed clear glass most.
• Six measurements, smallest value wins, about 5 mm of clearance per side. Mis-measurement causes far more fitting trouble than production ever does.
• Floor area is the scarce commodity: across the EU the average was 1.6 rooms per person in 2020 (Source: Eurostat, Housing in Europe). A partition costs you a steel profile; a wall costs you a strip of the room.
• Everything here is reversible, which is what makes it viable in a rented flat and harmless to resale value.

Key takeaways at a glance

Glass partitions give rooms structure without closing them visually, in the office, in the consulting room, in the living area

Source: Planning glass partitions: design, standards and safety

Insight	What it means for your project
Behaviour before product	A loft door has hinges, a handle and an opening direction. A fixed divider has none of that. Decide how you want to cross the line every day.
Glass sets the mood	Five glazing options move each zone from fully connected to properly private, without turning either side dark.
Smallest measurement wins	Openings are rarely square. Measure several points per side and build to the smallest, keeping about 5 mm clearance per side.
Reversible by design	The element comes out again and the opening is reusable. A stud wall has to be demolished.

Loft door or fixed divider: the one decision everything else follows from

Choose a loft door if the zone has to close on demand, and a fixed room divider if a permanent visual boundary with an open walk-through does the job.

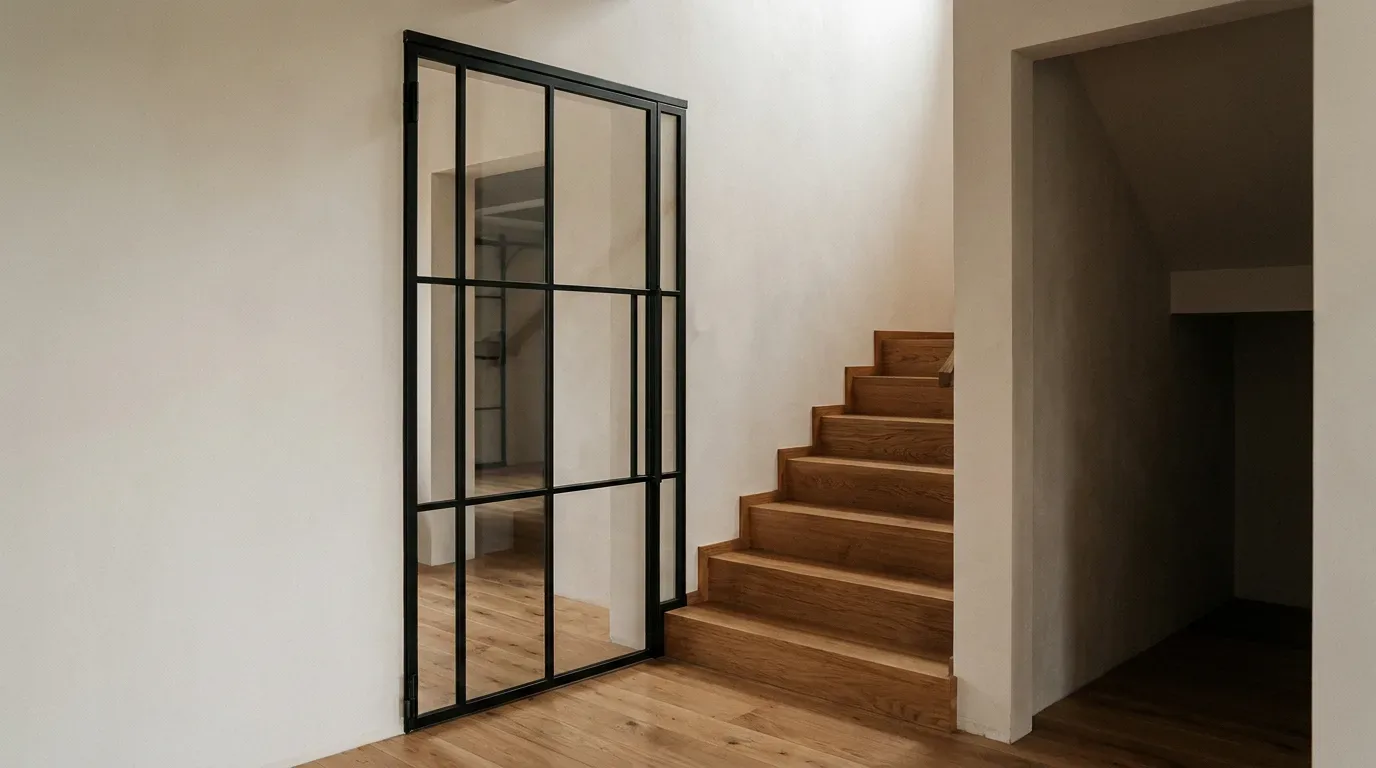

Through the glass and the black powder-coated steel, the two elements look like siblings. In daily use they are not. A loft door in Crittall style is a genuine door: hinge side, opening direction and angle, magnetic lock, handle, available as a single leaf, a double or a pivot version. A fixed steel-glass partition built to your opening carries none of that hardware. No leaf, no handle, no hinges, just a glazing line with an optional passage you walk through.

Our own configurator data makes the split visible: 44% of loft door configurations chose the elongated handle. On the divider side that decision does not exist, because there is nothing to take hold of. Across our projects the pattern repeats itself: kitchen-to-living transitions drift towards the door, reading corners and quiet workspaces towards the fixed line.

What closing actually buys you

Two concrete things. Dishwasher clatter and conversation are softened rather than shared, and cooking smells stop at the frame instead of settling into the sofa. That is a real, everyday effect, not an acoustic rating, and it is usually enough to make a kitchen-living boundary worth the door.

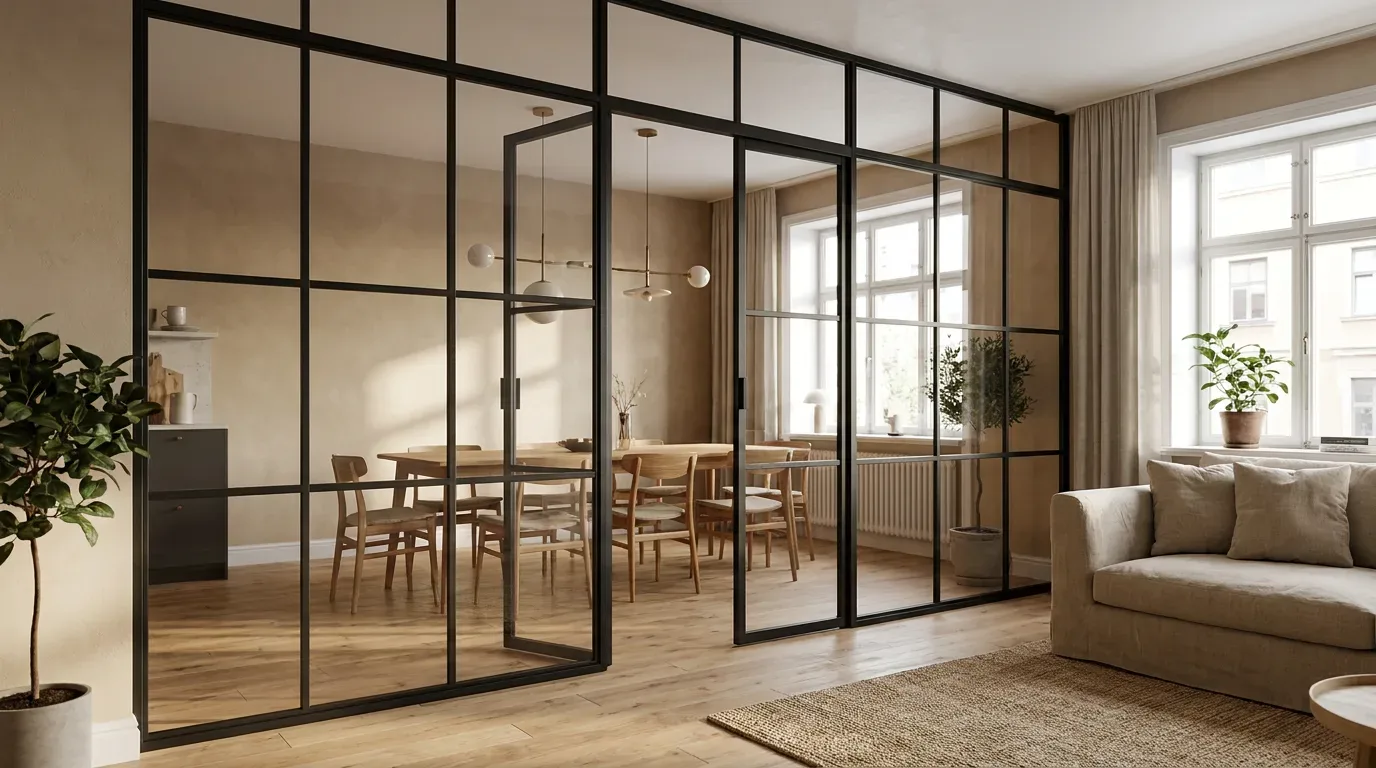

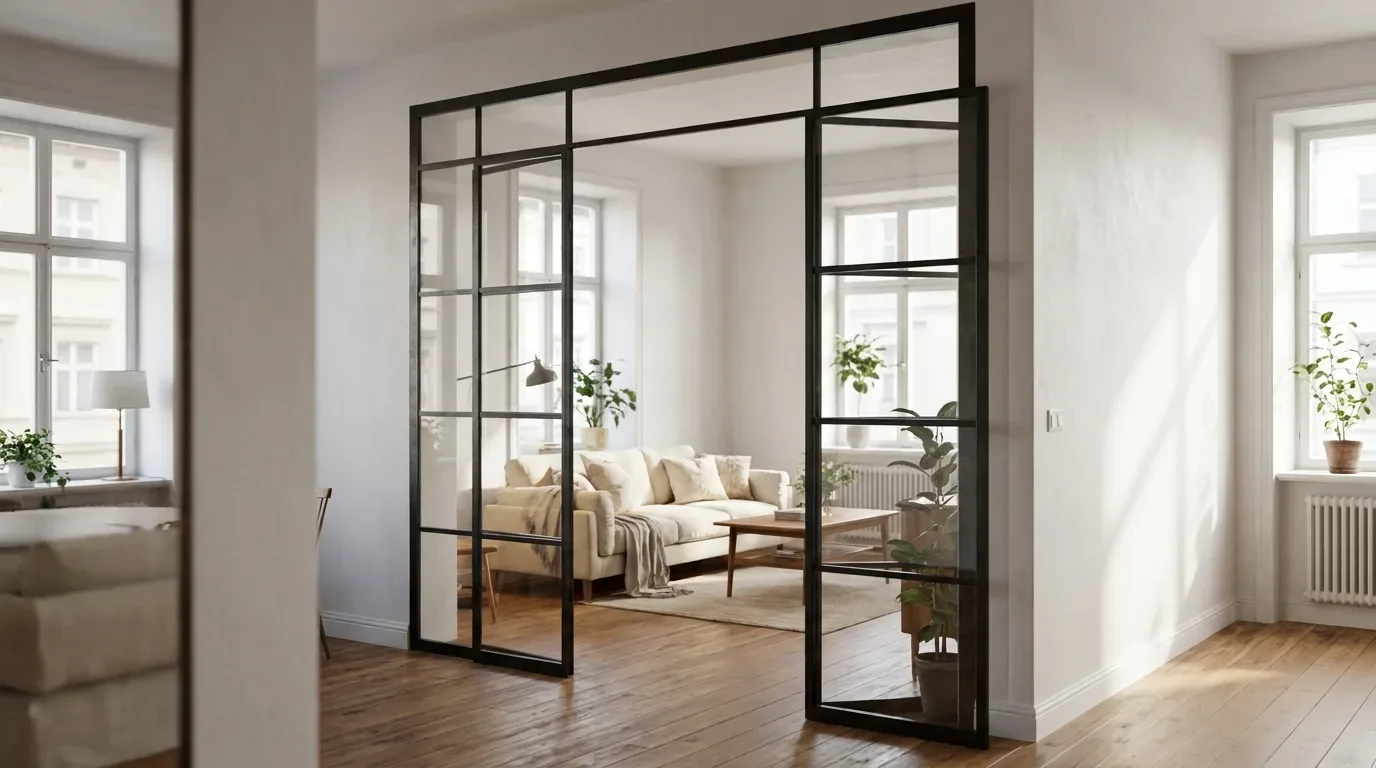

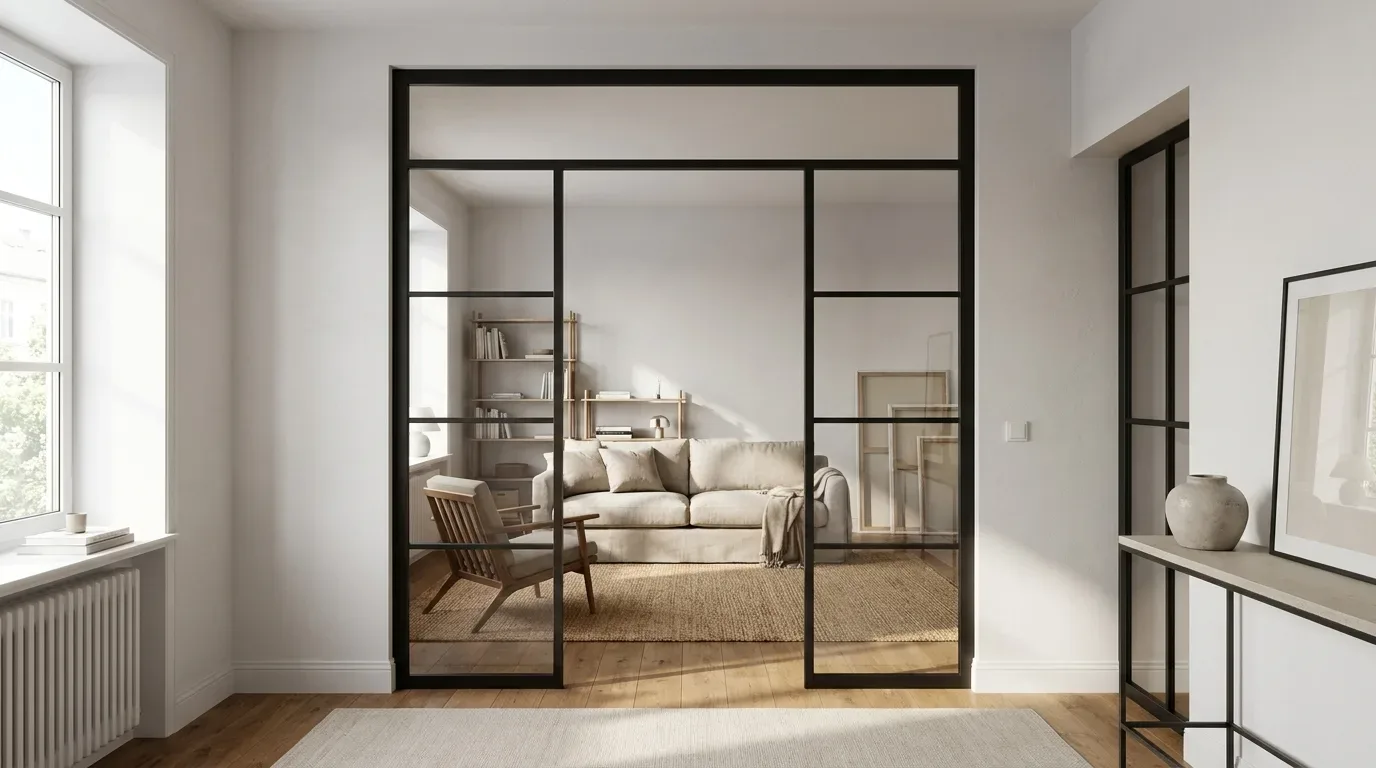

What a fixed line buys you

Nothing to operate and nothing to maintain. The boundary is drawn once and then gets out of the way, which matters where you cross it thirty times a day. Add a walk-through opening and circulation stays completely free.

Reading the room: where does the zoning line actually belong?

The line belongs where two functions genuinely collide, not where the floor plan happens to look empty.

A test that costs nothing: stand in the room at seven in the evening on a weekday and write down what is bothering what. That collision point is your line. The sightline you would hate to lose then tells you how transparent the element on it should be.

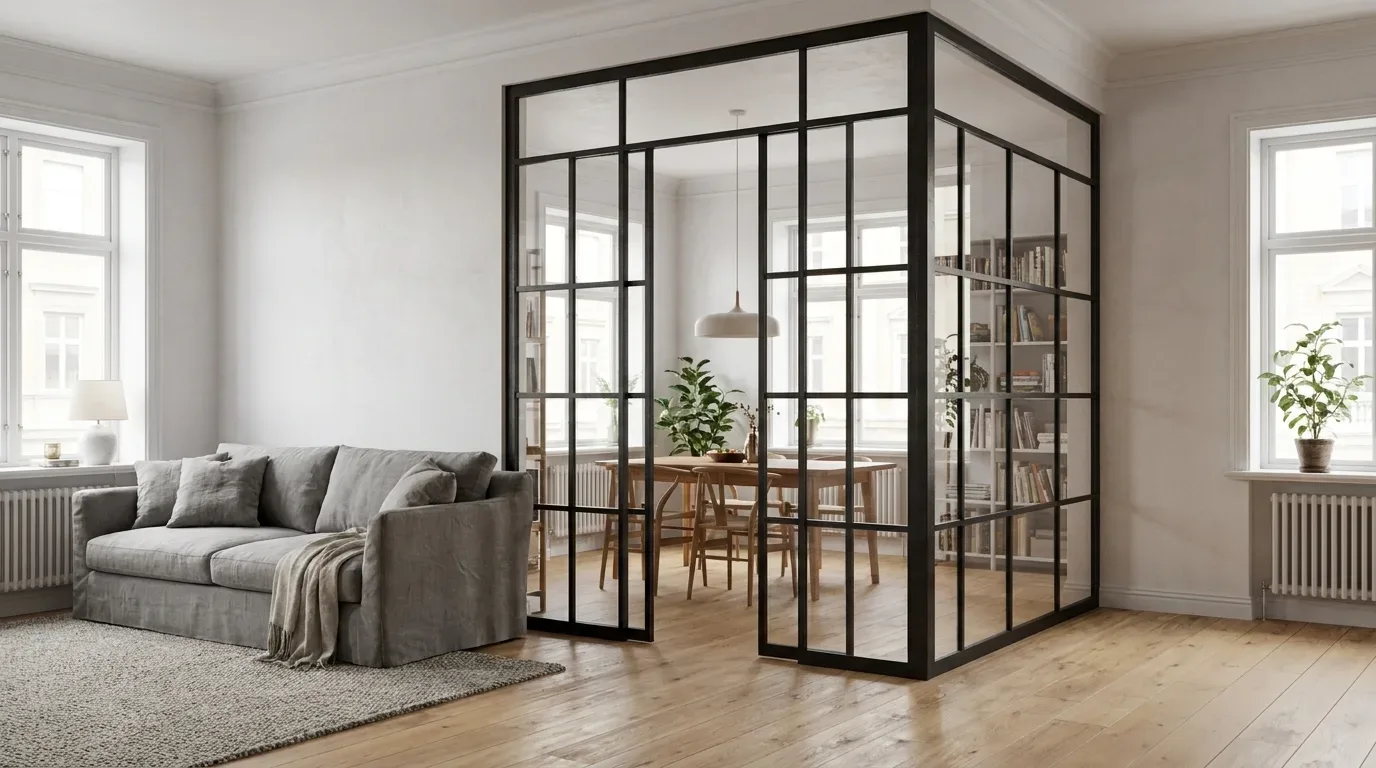

The kitchen edge

In a 45 m² living space, the extractor hood and the film on the sofa are in permanent competition. A glazed boundary on the kitchen edge takes the smells and the worst of the noise out of the equation while the cook still sees, and is seen by, the rest of the room.

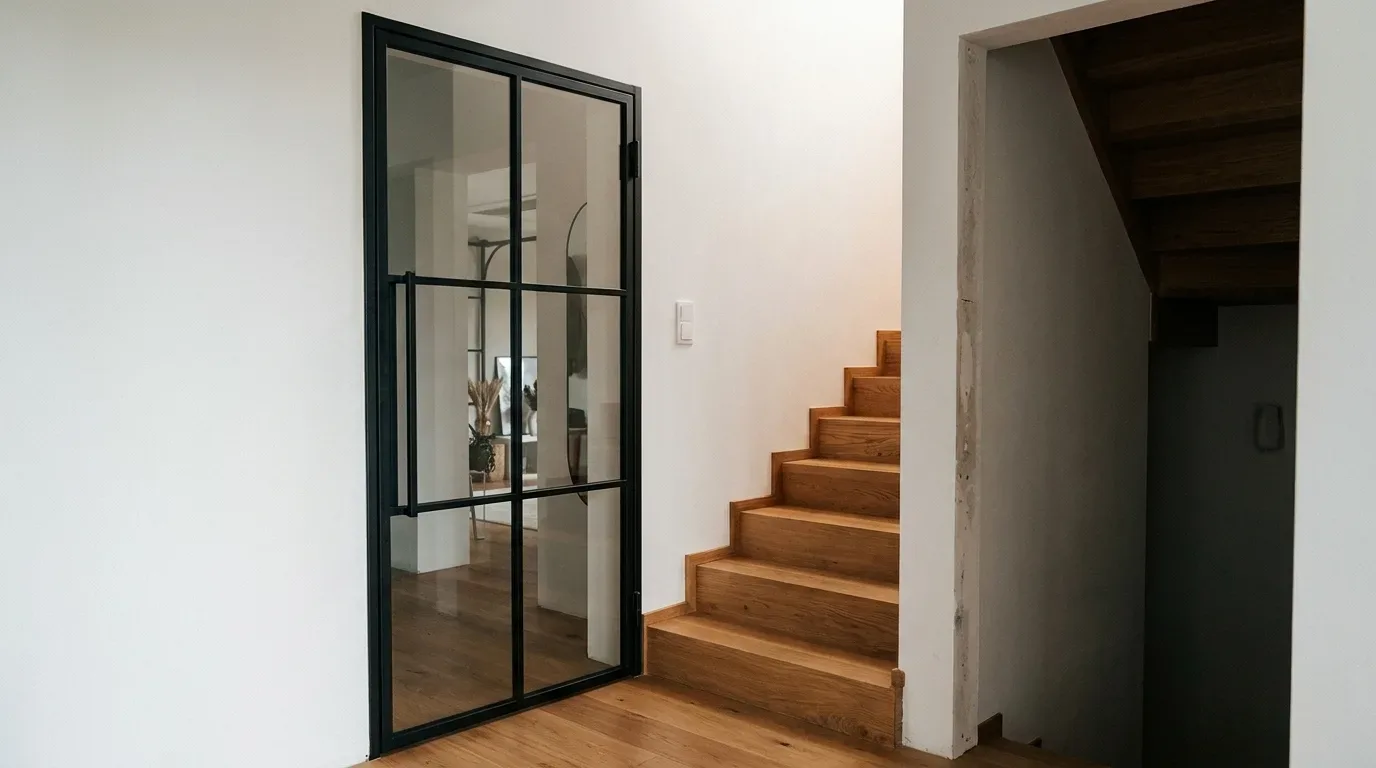

The work corner that can shut

Closable work corners are now the single most common reason customers describe when they get in touch about zoning. Plan the swing before you fix the line: a 100 cm leaf needs its full quarter circle of roughly one metre free of sideboards and chairs, and a pivot leaf moves on both sides of its axis.

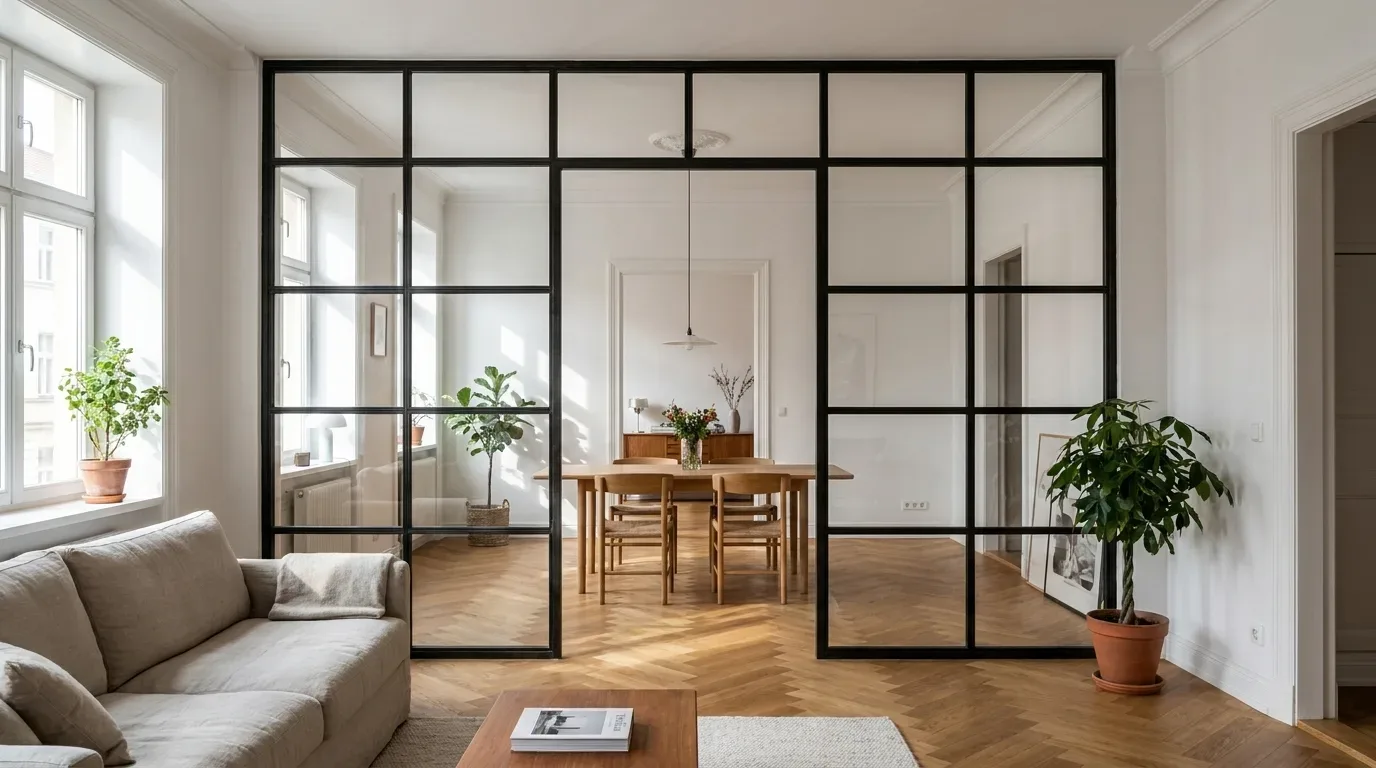

The entrance

Draughts, shoes and coats are the classic conflict at the front door, and in a period apartment the hallway is usually the darkest part of the flat. A fixed glazing line between entrance and living area stops the airflow and the clutter without taking the corridor's borrowed light away.

Glass and grid: how much do you want to see through?

Clear glass keeps two zones reading as one room, frosted glass hides detail while passing light, and smoked or dark smoked glass mutes the view without darkening either side.

Five options cover the whole ladder: clear, structured, frosted, smoked and dark smoked. Clear leaves the sightline fully open. Structured bends the view without erasing it. Frosted turns people into silhouettes. Smoked and dark smoked tint the scene progressively while daylight still crosses the boundary. In our own configurator, 46% of loft door configurations previewed clear glass most, which says something plain about priorities: light first, privacy second.

Behind the look sits a safety choice. All glazing here is safety glass, either tempered (ESG) or laminated (VSG). The difference only shows at the worst possible moment. Tempered glass breaks into small blunt crumbs; laminated glass holds its fragments on a film interlayer so the pane stays standing. For large panes in a walk-through zone, laminated is the sensible default.

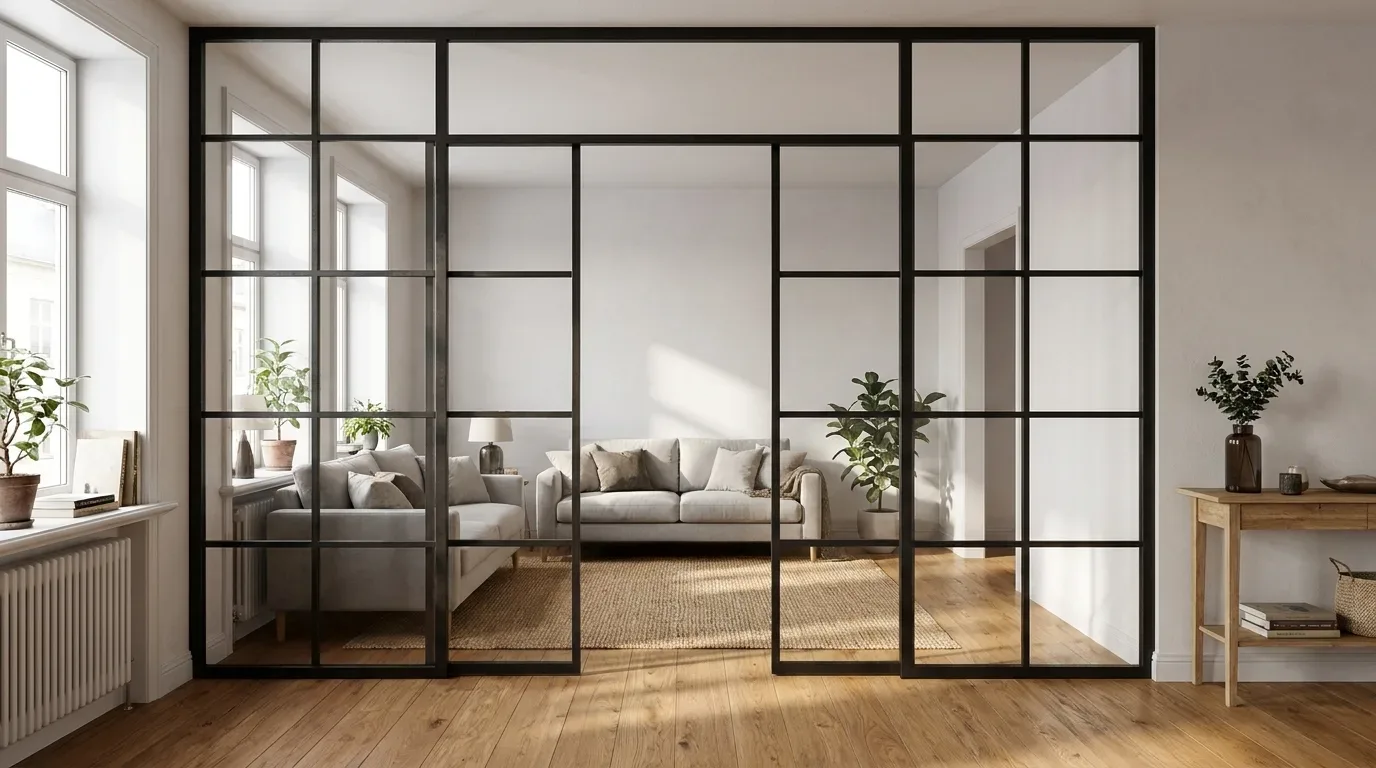

The bar grid is the third dial. Horizontal and vertical steel bars break a large glazed surface into a rhythm of panes, which is what makes a full-height partition read as architecture rather than as a shopfront. The frame itself is powder coated rather than wet painted: the finish goes on as dry powder and is cured, which gives an even colour across every profile, holds up to scratches on a surface people brush past daily, and produces no solvent emissions.

In Victorian conversions, I almost never find a square opening. I measure six points, work to the smallest, and leave the frame room to move. That habit, not clever joinery, is what makes a partition sit straight.

James W.
Bespoke furniture maker, London

Six measurements, and why the smallest one wins

Measure width and height at three points each, take the smallest value of each, and allow roughly 5 mm of mounting clearance per side. That is the entire rule, and skipping it causes most fitting problems.

Why three points? Because walls in older buildings are rarely straight. In around 70% of our loft-door projects, customers measure a difference between the left and the right side of the same opening, often a few millimetres, occasionally more than a centimetre, and the height varies across a single doorway more often than not. Made-to-measure production absorbs all of that, but only if the measuring on site captures it honestly.

One point worth stating plainly, because it trips people up: in the configurator you enter the exact dimensions you want the finished element to have, not the raw measurement of the opening. Take your smallest width and height, subtract the clearance, and enter that.

1. Measure the width at the top, in the middle and at the bottom.
2. Measure the height on the left, in the centre and on the right.
3. Take the smallest width and the smallest height.
4. Deduct roughly 5 mm per side so the frame can be aligned and fixed.
5. Mark skirting boards, sockets and radiators on your sketch.
6. Enter your desired finished dimensions in the configurator and check the 3D preview.

Your own sketch and your own measurements are the basis of production, which is exactly why the smallest-dimension rule carries so much weight. Very wide or very tall openings are not a problem in themselves: side panels and a transom extend the glazing to the full dimension instead of forcing one oversized leaf. And the data points where you would expect it to, since the most-adjusted setting in our loft door configurator was door leaf width. If you would rather hand the tape measure to someone else, our installation partner network takes over the on-site measuring.

With six numbers on paper, the useful next move is to type the smallest values into the 3D preview on the room divider configurator page. If the measured reality differs from the floor plan, you see what that means for your opening straight away.

Five mistakes we see on incoming sketches

The projects that go sideways almost always fail on one of five points: measuring from the floor plan, ignoring skirting boards and radiators, forgetting sockets on the frame line, overlooking the door swing, and ordering at the exact opening size.

• Measuring from the drawing. A floor plan shows the wall as designed, not as plastered. Trust the tape, not the PDF.
• Skirting boards and radiators. A frame that meets either cannot sit flush. Draw both on the sketch and decide up front whether the skirting gets cut or the line moves 10 cm.
• Sockets and switches on the line. One socket exactly where the profile lands means an electrician and a delay on mounting day. Check both wall faces at frame height before ordering.
• The swing radius. Mark the quarter circle on the floor with tape and live with it for a day. A door that opens 60 degrees into a shelf is a permanent irritation.
• No mounting gap. An element ordered at exactly the opening size cannot be aligned plumb in an uneven opening. Keep the clearance and let the fixing do the compensating.

Sloped reveals, mixed wall materials and very old masonry come up regularly, and our answers to frequent planning questions go into those edge cases in more depth.

What a partition costs against what a wall costs

A made-to-measure zoning element is configured online at a live fixed price and produced in the EU in 5-6 weeks, with dimensions, glass type and extras such as side panels driving the figure.

Compare that with the alternative. A stud wall claims a strip of floor area along its entire length, brings trades, filler, sanding and dust into the flat for several days, blocks the daylight on one side for good, and has to be demolished if you ever change your mind. A glazed partition stands on a slim powder-coated steel profile, is mounted in hours with no wet trades at all, and leaves the opening reusable.

Because Manufaktur X sells direct from the workshop, the configurator shows the effect of every change in real time: no quote rounds, no surprises in the basket. That is the practical difference between made to measure and off the shelf. A standard shelving unit from IKEA, the kind routinely used as a divider, comes in fixed module sizes, so in a room with a 2.7 m ceiling you get a zone that stops at 1.5 m and a gap above it. A bespoke element is built to your opening instead, and durability for furniture of this kind is described by European test standards such as EN 1730:2012, which sets out test methods for stability, strength and durability (Source: EN Standards).

You can compare the live figures on the loft door product page and the room divider product page, where each configuration carries its fixed price as you build it. For anything a configurator cannot settle, such as unusual openings or combined elements, our project team answers directly.

1. Configure: enter your exact desired dimensions, pick glass, grid and colour, and watch the price update with every click.
2. Order: the configured price is fixed and shipping is shown transparently in the basket.
3. Production: built to measure in the EU within 5-6 weeks.
4. Delivery and mounting: shipped EU-wide, mounted by you or by an installation partner.

Still undecided on glazing? Load your opening's dimensions on the loft door page and switch between clear and smoked glass in the 3D preview. Seeing your own two zones through each pane settles the privacy question faster than any description.

Frequently asked questions about zoning with glass

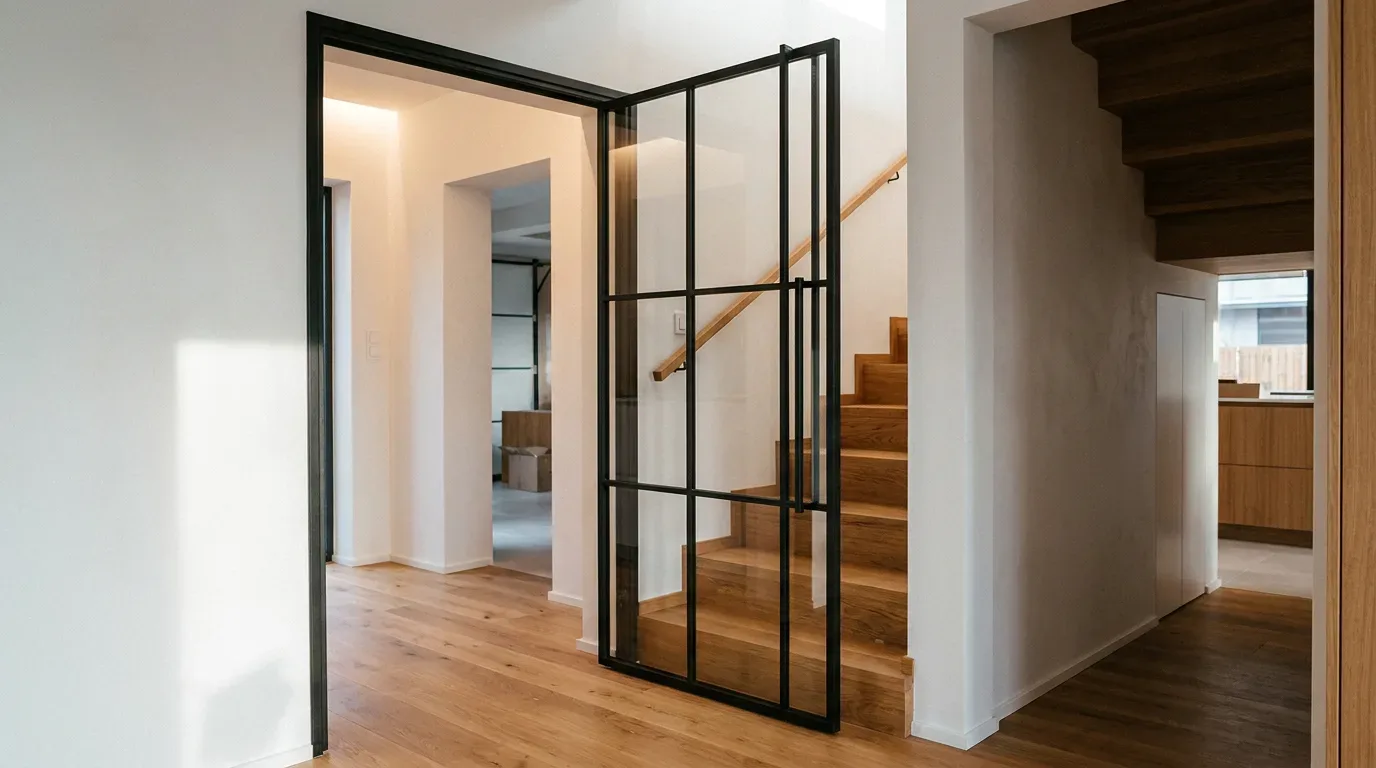

Can a loft door and a fixed divider share one wide opening?

Yes. The door covers the passage while fixed side panels, a transom or a continuing divider fills the remaining width and height.

Both parts are measured as a single made-to-measure project, so the steel profiles and the bar rhythm line up across the whole opening instead of meeting as two mismatched frames.

Does a glazed partition work in a rented flat?

Usually yes, because the element is non-load-bearing and comes out again, leaving the opening as it was.

Speak to the landlord before ordering and agree in writing what happens at the end of the tenancy. Reversibility is the argument that wins these conversations, and it is the main reason renters choose glass over drywall.

Is an open shelf a real alternative?

A freestanding shelf zones visually from both sides but never touches sound or smells and carries no glass.

Where a hint of separation is all you need, it is the lighter option: a large steel-and-solid-wood shelf or an open pipe shelf draws the boundary in solid oak, beech or ash, hardwoods of the kind covered by PEFC certification for furniture, while both sides stay usable.

How much daylight does a glass partition take away?

With clear glass the loss is negligible next to any opaque wall, because the steel profiles cover only a small fraction of the surface.

Frosted and smoked glass diffuse or tint the light rather than blocking it, which is why a north-facing zone argues strongly for clear panes.

In Helsinki I plan for dark winters, so I zone with glass before anything else. Clients ask me for privacy and then choose clear panes once they stand in the room and watch the light carry through.

Janne K.
Interior architect, Helsinki

From a line on the floor to a fitted partition

Three questions decide the whole project. Does the zone have to close, in which case it is a door? Is a permanent visual boundary enough, in which case it is a fixed divider? Or does a hint of separation do, in which case it is a shelf? Reversible steel-glass zoning is steadily becoming a normal line item in European renovation budgets, pushed by renters and by owners who would rather keep their options open than commit a room to one layout for a decade. Both elements sit within a wider range of made-to-measure furniture in steel, glass and solid wood, all built to your dimensions.

Once you know where your line runs, the rest is numbers: measure the opening at several points, take the smallest values, and enter your desired dimensions in the loft door or room divider configurator. The 3D preview shows your partition in your glass and your colour at a live fixed price, made in the EU in 5-6 weeks.
